QJ23B175 Siemens
Siemens QJ23B175 ITEQJ23B175
Send Print
  1. pin-int

ITEQJ23B175

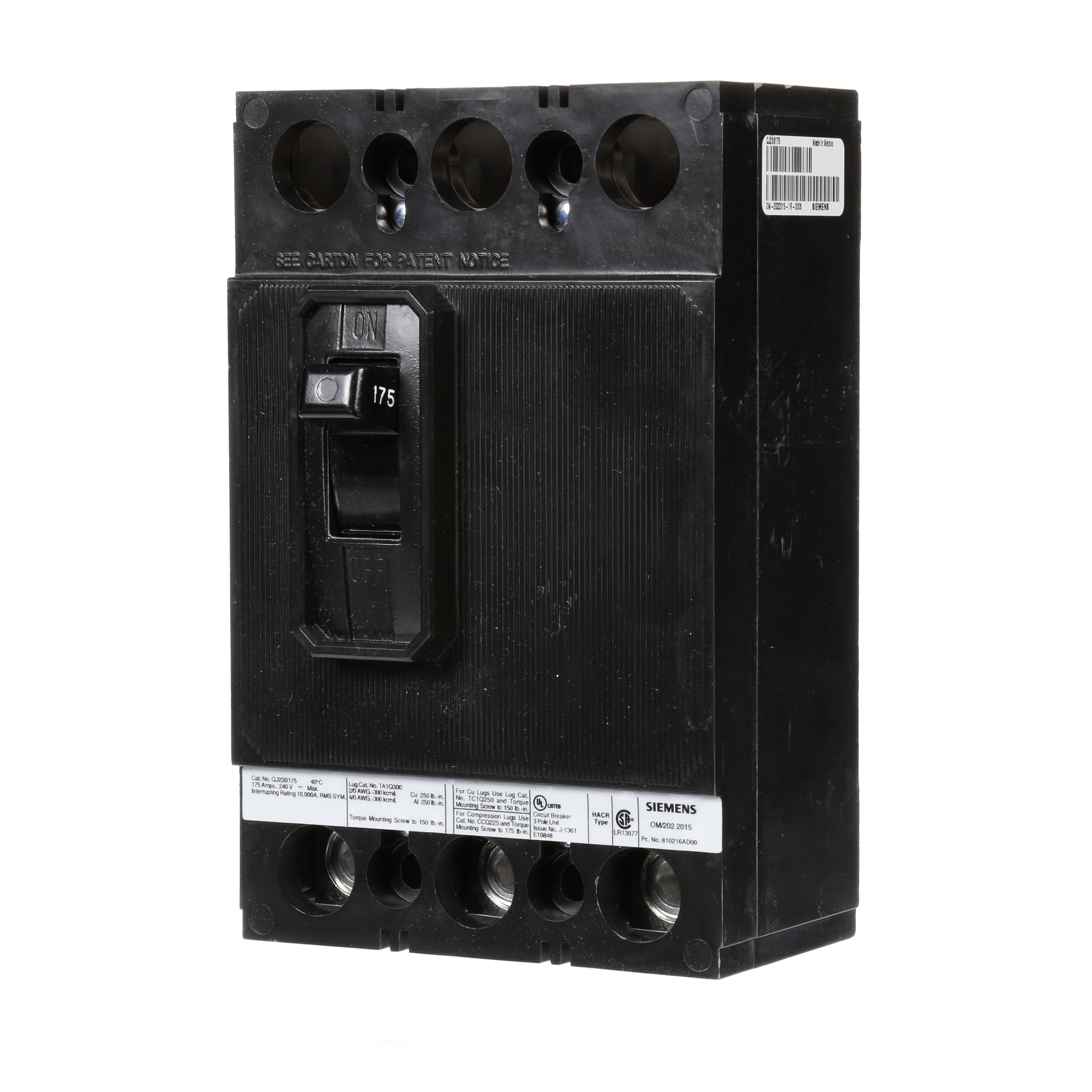

Siemens QJ23B175 3-Pole 175 Amp 240 Volt 10 kA Circuit Breaker

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • BPN: ITEQJ23B175
  • MPN: QJ23B175
  • UPC:783643193796
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

SIEMENS LOW VOLTAGE MOLDED CASE CIRCUIT BREAKER WITH TRIP FREE MECHANISM. QJ FRAME STANDARD 40C BREAKER. 175A 3-POLE (10KA AT 240V). SPECIAL FEATURES NO LUGS INSTALLED.

Amperage Rating      :      175 Amp
Amperage      :      175 Amp
Application      :      GENERAL APPLICATION
Brand Name      :      Siemens
Current Rating      :      175 AMP
Current      :      175 AMP
ETIM 7 Class      :      EC000228
Frequency Rating      :      50/60 Hz
Height      :      4 Inch
Interrupt Rating      :      10 kAIC
Length      :      8
Number of Poles      :      3 Pole
  • linkSpec Sheet https://mall.industry.siemens.com/tedservices/DatasheetService/DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:QJ23B175&language=en
