15100A6517 EATON
EATON 15100A6517 CHM15100A6517
Send Print
  1. pin-int

CHM15100A6517

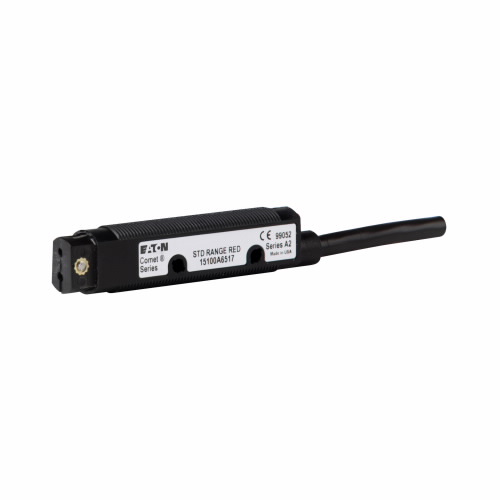

ETN 15100A6517 Eaton Comet 18mm tub

  • Manufacturers: Eaton (Group)
  • Brand Name: EATON
  • BPN: CHM15100A6517
  • MPN: 15100A6517
  • UPC:782113825557
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton Comet 18mm tubular photoelectric sensor, Fiber Optic, Forward Viewing, Fiber optic, Output ON, 6.6 ft, 100 mA PNP, 250 mA NPN at 10-30 Vdc, PVC, NPN and PNP open collector, 10-30 Vdc

Application      :      Vehicles: On-Road - PickUp & Delivery: Food
Brand Name      :      Eaton
Contact Configuration      :      NPN And PNP Open Collector
Dimensions      :      2.8700 IN X 0.4700 IN X 0.7100 IN
Enclosure Material      :      Polyurethane
Height      :      0.71 Inch
Input Voltage      :      10 V
Length      :      2.87 Inch
Operating Temperature      :      -40 To 158 °F
Standards      :      cUL Recognized,UL Recognized

Specifications

  • Contact configuration: NPN and PNP open collector
  • Cord length: 79.2 ft
  • Maximum DC current: 100 mA PNP, 250 mA NPN
  • Operating temperature - min: -40 °F
  • Input voltage: 10-30 Vdc
  • Cable type: Polyvinyl Chloride (PVC)
  • LED indicator: Output ON
  • Enclosure material: Polyurethane foam (RIM)
  • Type: Photoelectric Sensor
  • Operating mode: Fiber-optic
  • Sensor type: Fiber optic
  • Contact Rating: 100 mA PNP, 250 mA NPN at 10-30 Vdc
  • Operating temperature - max: 158 °F
  • Environmental rating: NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
  • Protection: Latching short circuit

General

  • UPC: 782113825557
  • Product Length/Depth: 2.87 in
  • Product Height: .71 in
  • Product Width: .47 in
  • Product Weight: .7 lb
  • Warranty: 3 year
  • Certifications: UL Recognized
  • pdfSpec Sheet https://media.distributordatasolutions.com/csv_eaton/2021q3/documents/477bf4ddd47e4112ef9a1e3a13e68b5b4b4a7a85.pdf
