ELJBE3250W
EATON
https://www.billows.com/3466158/product/CHDELJBE3250W
https://www.billows.com/3466158/product/CHDELJBE3250W
CHDELJBE3250W
ETN ELJBE3250W Earth Leakage acc fo
- Manufacturers: Eaton (Group)
- Brand Name: EATON
- BPN: CHDELJBE3250W
- MPN: ELJBE3250W
- UPC:786679118948
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at this location:
--
-
Login for Price
- Submit Slang Term

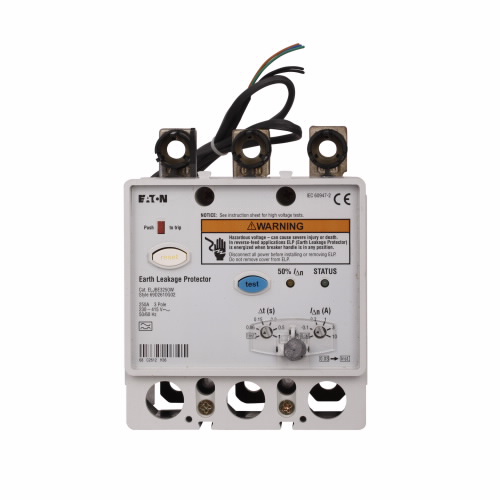

Eaton Series G molded case circuit breaker earth leakage module, JG-frame, Complete breaker, Three-pole, 250A, 415 Vac, Without terminals, Earth Leakage, Earth leakage modules, 50/60 Hz, Bottom mounted
| Amperage Rating | : | 250 Amp |
| Amperage | : | 250 Amp |
| Application | : | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Brand Name | : | Eaton |
| Class | : | Earth Leakage |
| Dimensions | : | 3.5700 IN X 4.1300 IN X 4.1300 IN |
| Frame | : | JG |
| Frequency Rating | : | 50-60 Hz |
| Frequency | : | 50-60 Hz |
| Height | : | 4.13 Inch |
| Length | : | 3.57 Inch |
| Mounting Type | : | Bottom |
| Number of Poles | : | 3 Pole |
| Standards | : | IEC Rated |
| Terminal Type | : | Without Terminals |
Specifications
- Accessories: Earth leakage modules
- Type: Earth leakage modules
- Frame: JG
- Frequency rating: 50 to 60 Hz
- Class: Earth leakage
- Circuit breaker frame type: Complete breaker
- Terminals: Without terminals
- Mounting Method: Bottom
- Voltage rating: 415 Vac
- Amperage Rating: 250 A
- Number of poles: Three-pole
General
- UPC: 786679118948
- Product Length/Depth: 3.57 in
- Product Height: 4.13 in
- Product Width: 4.13 in
- Product Weight: 4 lb
- Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Certifications: IEC Rated
Spec Sheet
