E49M11UP1 EATON
EATON E49M11UP1 CHME49M11UP1
Send Print
  1. pin-int

CHME49M11UP1

ETN E49M11UP1 Eaton E49 compact met

  • Manufacturers: Eaton (Group)
  • Brand Name: EATON
  • BPN: CHME49M11UP1
  • MPN: E49M11UP1
  • UPC:782113680958
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

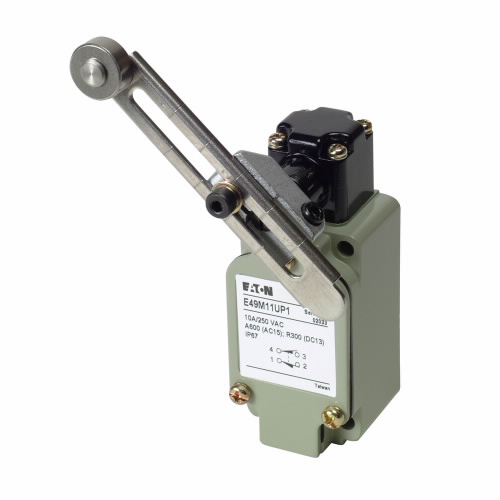

Assembled Limit Switch, E49, Adjustable roller lever, Screw Terminals, 10A at 250 Vac, 1.5A at 24 Vdc, Standard DIN, 1 mm-2m/s, 1NO-1NC

Actuator      :      Lever
Application      :      Commercial / Institutional Buildings / Structures - Power Distribution and Controls
Brand Name      :      Eaton
Connection Type      :      Screw-Type Terminals
Connection      :      Screw terminal
Contact Configuration      :      1NO-1NC
Contact Rating      :      10A at 250 Vac, 1.5A at 24 Vdc
Dimensions      :      5.1200 IN X 2.6400 IN X 1.5800 IN
Enclosure Material      :      Aluminum
Height      :      1.58 Inch
Length      :      5.12 Inch
Mounting Type      :      Standard DIN Rail
Mounting      :      Standard DIN rail
Operating Temperature      :      14 To 176 °F

Specifications

  • Contact configuration: 1 NO-1 NC
  • Operating temperature - min: 14 °F
  • Maximum AC current: 10 A continuous
  • Maximum DC current: 1.5 A
  • Connection: Screw terminal
  • Mounting method: Standard DIN rail
  • Enclosure material: Die cast aluminum
  • Series: E49
  • Contact Rating: 10A at 250 Vac, 1.5A at 24 Vdc
  • Operating temperature - max: 176 °F
  • Operating speed: 1 mm-2m/s
  • Environmental rating: IP67
  • Actuator: Adjustable roller lever

General

  • UPC: 782113680958
  • Product Length/Depth: 5.12 in
  • Product Height: 1.58 in
  • Product Width: 2.64 in
  • Product Weight: .58 lb
  • Warranty: 1 year
  • pdfSpec Sheet https://media.distributordatasolutions.com/csv_eaton/2021q3/documents/cc7ec8b52766b9d56bf94e3a22f8f0ff5109189f.pdf
