10NEU125B EATON

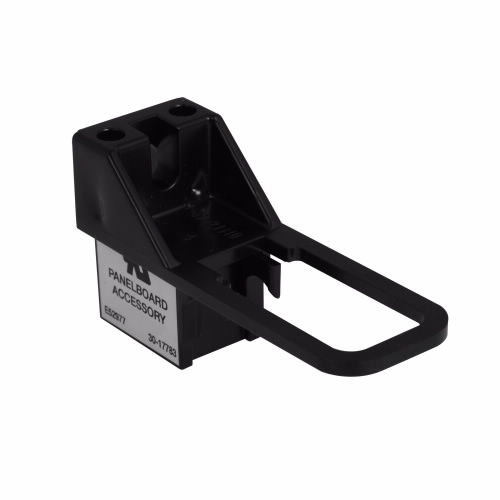

EATON 10NEU125B CHD10NEU125B
Send Print
  1. pin-int

CHD10NEU125B

ETN 10NEU125B 125A Max OEM Neutral

  • Manufacturers: Eaton (Group)
  • Brand Name: EATON
  • BPN: CHD10NEU125B
  • MPN: 10NEU125B
  • UPC:786676100205
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Available at this location: loading -- Locations

Eaton BR OEM interior assembly,1 in load center renewal part, neutral assembly

Amperage Rating      :      125 Amp
Amperage      :      125 Amp
Application      :      Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other
Brand Name      :      Eaton
Dimensions      :      1.0000 IN X 1.0000 IN X 1.0000 IN
Height      :      1 Inch
Length      :      1 Inch
Standards      :      Contact Manufacturer,Federal Specifications Classification W-P-115B, Type 1 and Class 2 Requirements

Specifications

  • Special features: Suitable for BR loadcenter
  • Type: Neutral assembly
  • Cover: Cover not included
  • Wire size: (10) #14-4 AWG Cu
  • Used with: For BR loadcenter
  • Amperage Rating: 125A

General

  • UPC: 786676100205
  • Product Length/Depth: 1 in
  • Product Height: 1 in
  • Product Width: 1 in
  • Product Weight: .1 lb
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Compliances: Federal Specifications Classification W-P-115B, Type 1 and Class 2 Requirements
  • Certifications: Contact Manufacturer
  • pdfSpec Sheet https://media.distributordatasolutions.com/csv_eaton/2021q3/documents/a3684ce2e3836ebd8785ad396549213f5e3c2e9b.pdf
